7.5″ Lite series electronic shelf label

Short Description:

Model YAL75 is a 7.5-inch electronic display device that can be placed on the     wall which replace the traditional paper label. The E-paper display technology boasts  a high contrast ratio, makes superior viewing angle at nearly 180°. Each device is  connected to the 2.4Ghz base station through wireless network. The changes or configuration of the image on the device can be configured via software and transmitted to the base station then to the label. The latest display content can be updated on the screen in real time basis efficiently and spontaneously.

  • Product Code: YAL75
  • Product Detail

    Product Tags

    Key Features

      Advanced Battery Saving Chipset Only Available in Texas Instrument; Low Consumption

        E-Ink Display and Available Up to Three Colours B/W/R  or B/W/R

        Wireless 2-way Communication Between Your System and The Display

        Multi-language Enabled, Able to Show Complex Information

        Customizable Layout and Content

        LED Flashing for Indicator remind

        Supported by Table Top with Adapter

        Easy to Install, Integrate and Maintain

    Key Features

    EATACCN cloud centralized control platform to update and design the template of labels,support schedule setting,bulk change,and the POS/ERP connected by API.
    Our wireless protocol uses less energy because of its time intelligent and leverages the ESL infrastructure key component of the connected store enabling retailers to connect directly with their customers at the point of decision. Our  Electronic Shelf Labels are available with LED or without LED.

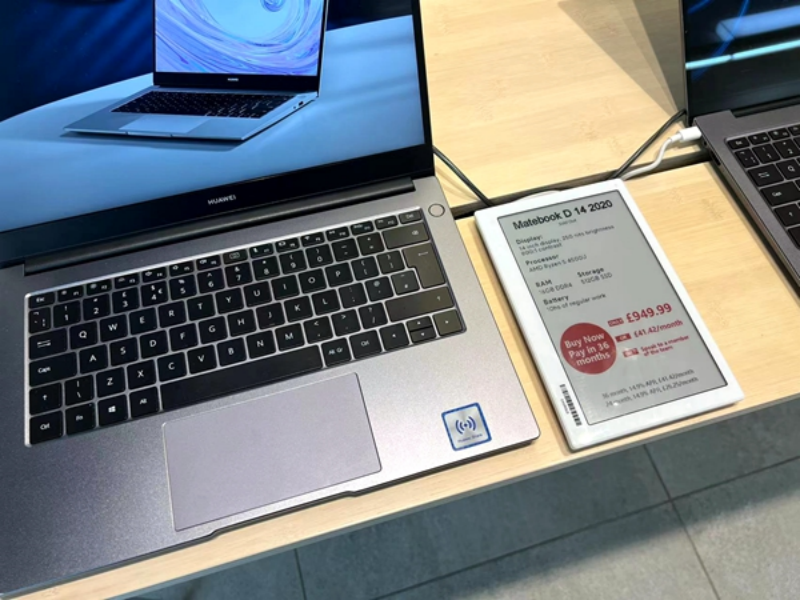

    acvav (2)

    LITE SERIES 2.9” Label


    Screen Size 7.5inch
    Weight 201 g
    Appearance Frame Shield
    Chipset Texas Instrument
    Material ABS
    Total Dimension 183*118*11.2 /7.2*4.65*0.44inch
    Operating Temperature 0-40°C
    Battery Life Time 5-10 years (2-4 updates per day)
    Battery CR2450*4ea (Replaceable Batteries)
    Power 0.1W

    *Battery life time dependent on the frequency of updates

    Display Area 162.6x97.3mm/7.5inch
    Display Colour Black & White & Red / Black & White & Yellow
    Display Mode Dot Matrix Display
    Resolution 640× 384 pixel
    DPI 183
    Water Proof IP54
    LED Light None
    Viewing Angle > 170°
    Time of Refresh 16 s
    Power Consumption of Refresh 8 mA
    Language Multi-Language Available

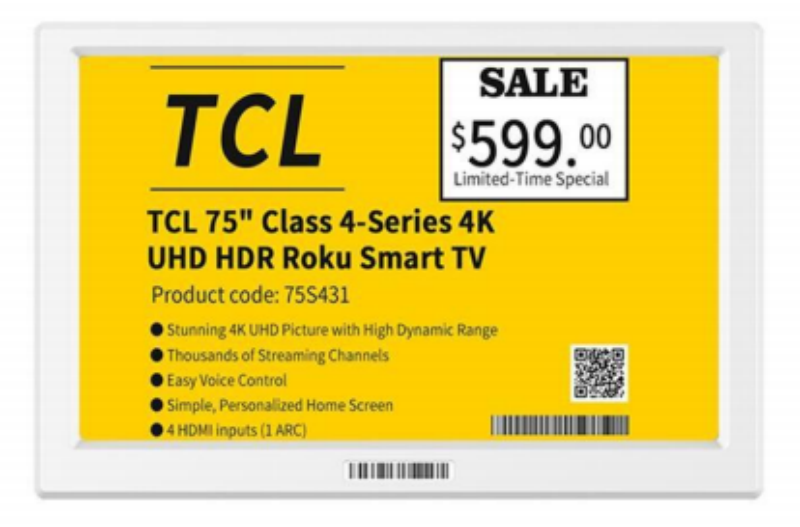

    acvav (3)

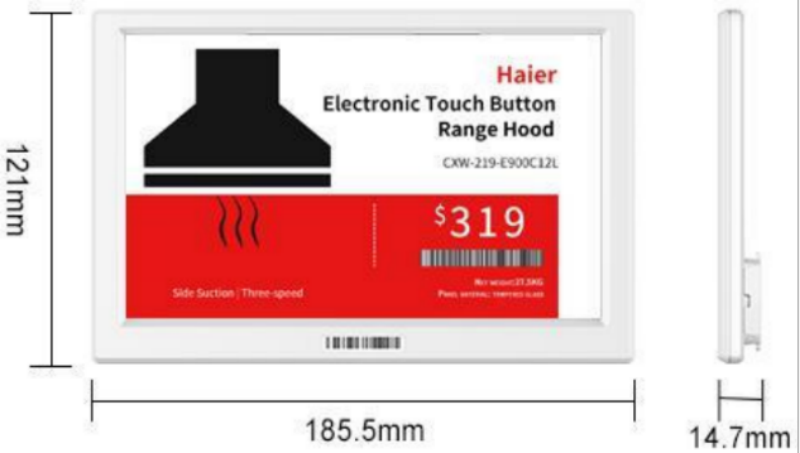

    acvav (1)

    Maintenance and maintenance

    In addition to regular cleaning and maintenance, there are several key factors to keep in mind when maintaining electronic shelf labels. One of the most important items is the placement of the labels themselves. ESLs should be placed in areas where customers can easily see them, but also avoid physical contact. ESLs are sensitive to touch and can be easily damaged if bumped or bumped.

    Another important factor in maintaining electronic shelf labels is the software that powers them. Software must be updated regularly to ensure that displays accurately reflect pricing information and stock levels. The software also controls other important functions, such as the timing of price changes, so keeping it up to date is crucial.
