2.66″ Freeze series electronic shelf label

Short Description:

Model YAF266 is a 2.66-inch electronic display device that can be placed on the     wall which replace the traditional paper label. The E-paper display technology boasts  a high contrast ratio, makes superior viewing angle at nearly 180°. Each device is         connected to the 2.4Ghz base station through wireless network. The changes or configuration of the image on the device can be configured via software and transmitted to the base station then to the label. The latest display content can be updated on the screen in real time basis efficiently and spontaneously.

  • Product Code: YAP-01
  • Product Detail

    Product Tags

    Key Features

    ▶  Advanced Battery Saving Chipset Only Available in Texas Instrument; Low  Consumption

       E-Ink Display and Available Up to Three Colours B/W/R  or B/W/R

    ▶   Wireless 2-way Communication  Between Your System and The Display

       Multi-language Enabled, Able to Show Complex Information

      Customizable Layout and Content

       LED Flashing for Indicator remind

    Supported by Table Top with Adapter

    Easy to Install, Integrate and Maintain


    How it Works?

    EATACCN cloud centralized control platform to update and design the template of labels,support schedule setting,bulk change,and the POS/ERP connected by API.
    Our wireless protocol uses less energy because of its time intelligent and leverages the ESL infrastructure key component of the connected store enabling retailers to connect directly with their customers at the point of decision. Our  Electronic Shelf Labels are available with LED or without LED.


    FREZEER SERIES 2.66” Label

    Screen Size 2.66 inch
    Weight 28 g
    Appearance Frame Shield
    Chipset Texas Instrument
    Material ABS

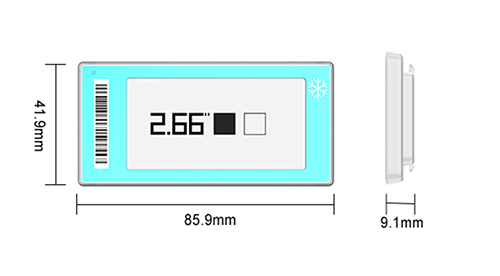

    Total Dimension 85.9*41.9*9.1mm
    Operating Temperature -20-40°C
    Battery Life Time 5-10 years (2-4 updates per day)
    Battery Polymer battery
    Power 0.1W
    Display Area 59.5x30.1mm/2.66inch
    Display Colour Black & White & Red / Black & White & Yellow
    Display Mode Dot Matrix Display
    Resolution 296× 152 pixel
    DPI 183
    Water Proof IP67
    LED Light 7 colors LED
    Viewing Angle > 170°
    Time of Refresh 16 s
    Power Consumption of Refresh 8 mA
    Language Multi-Language Available





    Maintenance and Maintenance

    Better customer experience

    The most successful retailers know that delivering an exceptional customer experience is key to driving sales and building brand loyalty. Electronic shelf labels play a vital role in this by improving the customer experience in several ways. For example, customers can easily read pricing and product details, which can help them make informed purchasing decisions. In addition, electronic shelf labels can provide valuable product information, such as availability, ingredients, and nutritional information, helping customers make informed purchasing choices.
