1.54″ Lite series electronic shelf label
Key Features For Hardware
▶ Advanced Battery Saving Chipset Only Available in Texas Instrument; Low Consumption
▶ E-ink Display and Available Up to Three or Four Colors B/W/R or B/W/R/Y
▶ Wireless 2-way Communication Between Your System and The Display
▶ Multi-language Enabled, Able to Show Complex Information
▶ Customizable Layout and Content labelling (OEM & ODM) Services
▶ LED Flashing for Indicator remind
▶ Supported by Table Top with Adapter
▶ Easy to Install, Integrate and Maintain
Key Features For Software
EATACCN cloud centralized control platform enable you to update and design the template of labels, which support schedule setting, bulk price change, and API integration with your POS/ERP system.
Our wireless protocol uses less energy because of its breakthrough technology and leverages the ESL infrastructure key component of the connected store enabling retailers to connect directly with their customers at the point of decision. Our Electronic Shelf Labels are available with LED or without LED depending on your demand.
LITE SERIES 1.54" Label
GENERAL SPECIFICATION
| Screen Size | 1.54inch |
| Weight | 26 g |
| Appearance | Frame Shield |
| Chipset | Texas Instrument |
| Material | ABS |
| Total Dimension | 53.5*38.8*15mm/2.1*1.53*0.59inch |
| OPERATION | |
| Operating Temperature | 0-40°C |
| Battery Life Time | 5-10 years (2-4 updates per day) |
| Battery | CR2450*2ea (Replaceable Batteries) |
| Power | 0.1W |
*Battery life time dependent on the frequency of updates
| DISPLAY | |
| Display Area | 26.9x26.9mm/1.54inch |
| Display Colour | Black & White & Red / Black & White & Yellow |
| Display Mode | Dot Matrix Display |
| Resolution | 200 × 200 pixel |
| DPI | 183 |
| Water Proof | IP53 |
| LED Light | None |
| Viewing Angle | > 170° |
| Time of Refresh | 16 s |
| Power Consumption of Refresh | 8 mA |
| Language | Multi-Language Available |

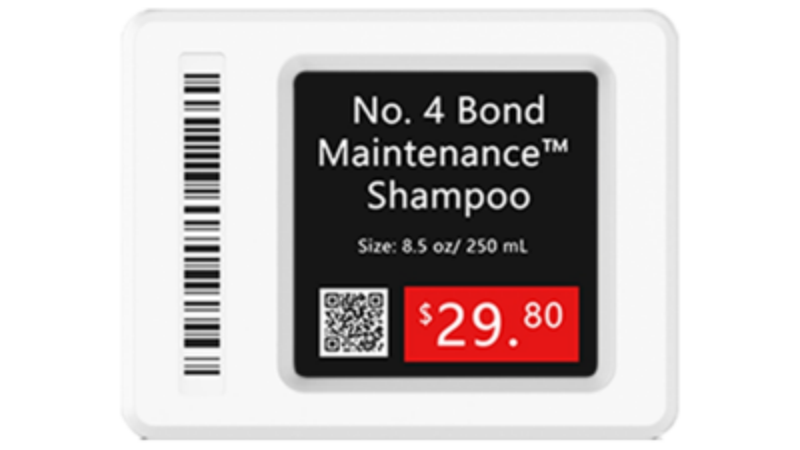

FRONT VIEW

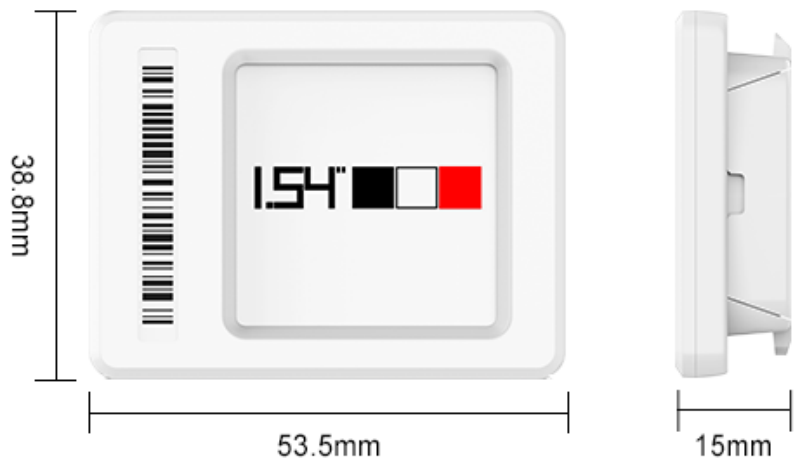

MEASURES VIEW
Function Description
- Utilizing E-ink Technology, it can display product and price information shown on screen with a low power consumption and with highly similarity of visual comfort as ink on paper. After deploying our ESL system on SAAS cloud base, it can easily bind unlimited ESL labels under a single AP station, design templates with various elements, transmit data efficiently and update product information of almost 10,000 ESL labels instantly in 20 minutes through the wireless communication channel of 2.4 GHZ technology. Eventually, it brings numerous benefits to retailers such as enhance their SKU information management efficiency and accuracy, improve the customer experience and promotion sales rate, etc.
Product Advantages
Improve accuracy
One of the main advantages of electronic shelf labels is that they provide greater accuracy, helping to eliminate errors associated with manual labeling. For example, human error often leads to incorrect pricing, leading to disappointed customers and lost revenue. With electronic shelf labels, retailers can update prices and other information in real time, ensuring everything is accurate and up to date.
Greater flexibility
Another major advantage of electronic shelf labels is the flexibility they offer. Retailers can easily change prices or product information as needed, which is especially useful during peak season or holiday sales. This capability enables retailers to respond more quickly to market conditions, increasing sales and profits.
FAQ
What is the average lead time?
For samples, the lead time is about 7-14 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please feel free to contact us for handling. In all cases we will try to accommodate your needs. In most cases we are able to do so.
Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
