2.13″ Lite series electronic shelf label

Short Description:

Model YAL213 is a 2.13-inch electronic display device that can be placed on thewall which replace the traditional paper label. The E-paper display technology boasts  a high contrast ratio, makes superior viewing angle at nearly 180°. Each device is connected to the 2.4Ghz base station through wireless network. The changes or configuration of the image on the device can be configured via software and transmitted to the base station then to the label. The latest display content can be updated on the screen in real time basis efficiently and spontaneously.

  • Product Code: YAL213
  • Product Detail

    Product Tags

    Key Features

     Advanced Battery Saving Chipset Only Available in Texas Instrument; Low Consumption

        E-Ink Display and Available Up to Three Colours B/W/R  or B/W/R

        Wireless 2-way Communication Between Your System and The Display

        Multi-language Enabled, Able to Show Complex Information

        Customizable Layout and Content

        LED Flashing for Indicator remind

        Supported by Table Top with Adapter

        Easy to Install, Integrate and Maintain

    Key Features

    EATACCN cloud centralized control platform to update and design the template of labels,support schedule setting,bulk change,and the POS/ERP connected by API.
    Our wireless protocol uses less energy because of its time intelligent and leverages the ESL infrastructure key component of the connected store enabling retailers to connect directly with their customers at the point of decision. Our  Electronic Shelf Labels are available with LED or without LED.

    bsbs (2)

    LITE SERIES 2.9” Label


    Screen Size 2.13inch
    Weight 33 g
    Appearance Frame Shield
    Chipset Texas Instrument
    Material ABS

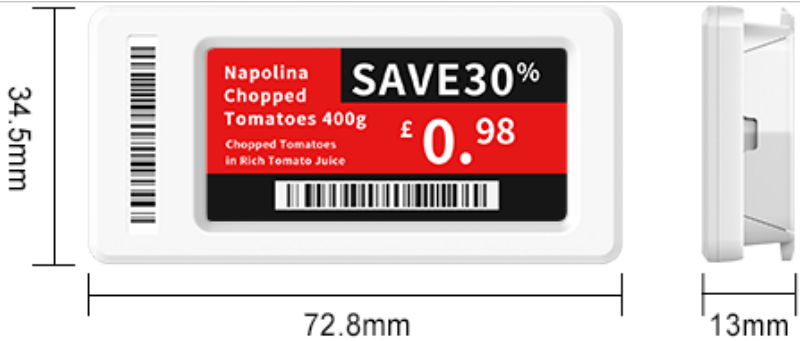

    Total Dimension 72.8*34.5*13mm/ 2.86*1.36*0.51inch
    Operating Temperature 0-40°C
    Battery Life Time 5-10 years (2-4 updates per day)
    Battery CR2450*2ea (Replaceable Batteries)
    Power 0.1W

    *Battery life time dependent on the frequency of updates

    Display Area 48x23.1mm/2.13inch
    Display Colour Black & White & Red / Black & White & Yellow
    Display Mode Dot Matrix Display
    Resolution 250 × 122 pixel
    DPI 183
    Water Proof IP53
    LED Light None
    Viewing Angle > 170°
    Time of Refresh 16 s
    Power Consumption of Refresh 8 mA
    Language Multi-Language Available


    bsbs (3)


    bsbs (1)

    Product Advantage

    Staying ahead of the curve in today's retail environment is critical, and doing so often requires innovative technology solutions. One of the most exciting advances in recent years has been electronic shelf labels (ESL), a digital solution that replaces traditional paper labels on store shelves. In this article, we explore the many advantages of electronic shelf labels and how they are changing the retail industry.

    The most successful retailers know that delivering an exceptional customer experience is key to driving sales and building brand loyalty. Electronic shelf labels play a vital role in this by improving the customer experience in several ways. For example, customers can easily read pricing and product details, which can help them make informed purchasing decisions. In addition, electronic shelf labels can provide valuable product information, such as availability, ingredients, and nutritional information, helping customers make informed purchasing choices.

    In conclusion, electronic shelf labels offer numerous advantages to retailers of all types and sizes. From improving accuracy and efficiency to saving costs and increasing profit margins, electronic shelf labels are a powerful retail solution that can help transform any business. By acknowledging the many benefits of this innovative technology, retailers can stay ahead and continue to thrive in a fast-paced, ever-changing retail environment.
