2.66″ Lite series electronic shelf label

Short Description:

Model YAL266 is a 2.66-inch electronic display device that can be placed on the wall which replace the traditional paper label. The E-paper display technology boasts  a high contrast ratio, makes superior viewing angle at nearly 180°. Each device is connected to the 2.4Ghz base station through wireless network. The changes or configuration of the image on the device can be configured via software and transmitted to the base station then to the label. The latest display content can be updated on the screen in real time basis efficiently and spontaneously.

  • Product Code: YAL266
  • Product Detail

    Product Tags

    Key Features

     Advanced Battery Saving Chipset Only Available in Texas Instrument; Low Consumption

        E-Ink Display and Available Up to Three Colours B/W/R  or B/W/R

        Wireless 2-way Communication Between Your System and The Display

        Multi-language Enabled, Able to Show Complex Information

        Customizable Layout and Content

        LED Flashing for Indicator remind

        Supported by Table Top with Adapter

        Easy to Install, Integrate and Maintain

    Key Features

    EATACCN cloud centralized control platform to update and design the template of labels,support schedule setting,bulk change,and the POS/ERP connected by API.
    Our wireless protocol uses less energy because of its time intelligent and leverages the ESL infrastructure key component of the connected store enabling retailers to connect directly with their customers at the point of decision. Our  Electronic Shelf Labels are available with LED or without LED.

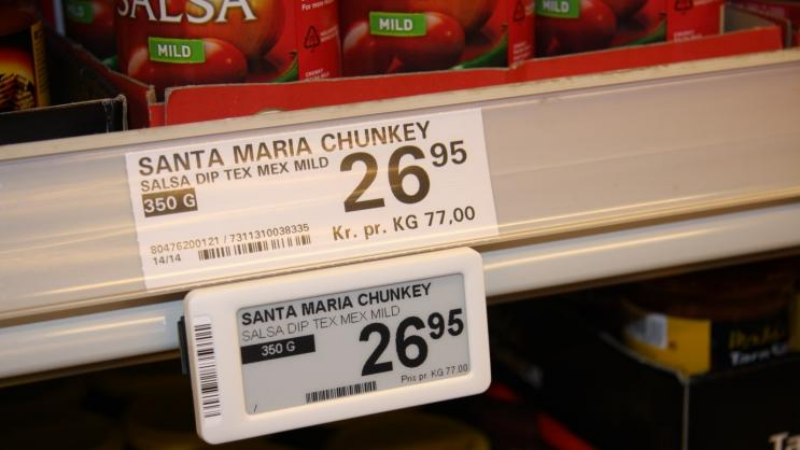

    vdsbs (2)

    LITE SERIES 2.9” Label


    Screen Size 2.66inch
    Weight 36 g
    Appearance Frame Shield
    Chipset Texas Instrument
    Material ABS
    Total Dimension 90.8×42.9*13mm
    Operating Temperature 0-40°C
    Battery Life Time 5-10 years (2-4 updates per day)
    Battery CR2450*2ea (Replaceable Batteries)
    Power 0.1W

    *Battery life time dependent on the frequency of updates

    Display Area 59.5x30.1mm/2.66inch
    Display Colour Black & White & Red / Black & White & Yellow
    Display Mode Dot Matrix Display
    Resolution 296× 152 pixel
    DPI 183
    Water Proof IP53
    LED Light None
    Viewing Angle > 170°
    Time of Refresh 16 s
    Power Consumption of Refresh 8 mA
    Language Multi-Language Available

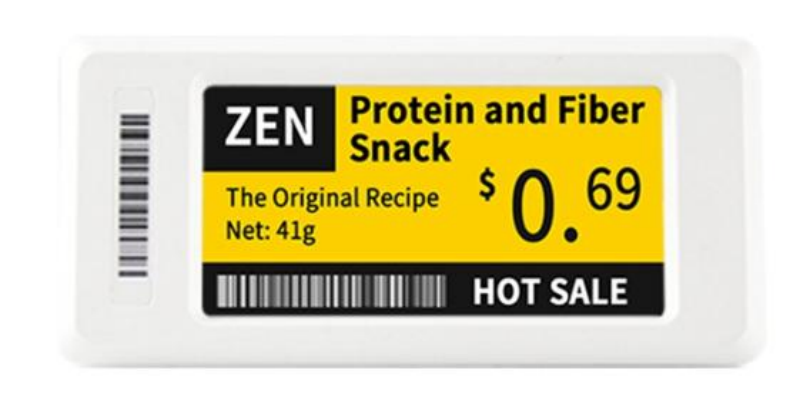

    vdsbs (3)

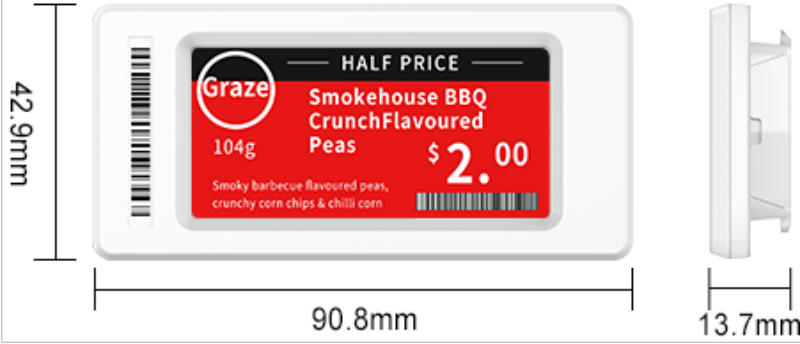

    vdsbs (1)

    Maintenance and Maintenance

    As the retail industry continues to evolve, electronic shelf labels have become an important tool for managing inventory and providing pricing information to customers. Electronic shelf labels, also known as ESLs, are digital displays that replace traditional paper labels on store shelves. Displays are automatically updated over the wireless network, eliminating the need to manually change prices. While electronic shelf labels are a powerful tool, like any technology, they require maintenance to ensure they work properly.

    Software must be updated regularly to ensure that displays accurately reflect pricing information and stock levels. The software also controls other important functions, such as the timing of price changes, so keeping it up to date is crucial.

    Finally, when maintaining electronic shelf labels, it is imperative to have a backup plan in case of a power outage or other unplanned event. This may include backup batteries or backup power sources such as generators for each display.


    Can you supply the relevant documentation?

    Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

    Do you guarantee safe and secure delivery of products?

    Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

    What are your prices?

    Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
