2.9″ Lite series electronic shelf label

Short Description:

Model YAL29 is a 2.9-inch electronic display device that can be placed on the     wall which replace the traditional paper label. The E-paper display technology boasts  a high contrast ratio, makes superior viewing angle at nearly 180°. Each device is         connected to the 2.4Ghz base station through wireless network. The changes or configuration of the image on the device can be configured via software and transmitted to the base station then to the label. The latest display content can be updated on the screen in real time basis efficiently and spontaneously.


  • Product Code: YAL29
  • Product Detail

    Product Tags

    Key Features

     Advanced Battery Saving Chipset Only Available in Texas Instrument; Low Consumption

        E-Ink Display and Available Up to Three Colours B/W/R  or B/W/R

        Wireless 2-way CommunicationBetween Your System and The Display

    ▶    Multi-language Enabled, Able to Show Complex Information

        Customizable Layout and Content

        LED Flashing for Indicator remind

        Supported by Table Top with Adapter

        Easy to Install, Integrate and Maintain

    Key Features

    EATACCN cloud centralized control platform to update and design the template of labels,support schedule setting,bulk change,and the POS/ERP connected by API.
    Our wireless protocol uses less energy because of its time intelligent and leverages the ESL infrastructure key component of the connected store enabling retailers to connect directly with their customers at the point of decision. Our  Electronic Shelf Labels are available with LED or without LED.

    acvava (3)

    LITE SERIES 2.9” Label

    GENERAL SPECIFICATION

    Screen Size 2.9inch
    Weight 45 g
    Appearance Frame Shield
    Chipset Texas Instrument
    Material ABS
    Total Dimension 90.8*42.9*13.7mm/3.57*1.69*0.54inch
    OPERATION
    Operating Temperature 0-40°C
    Battery Life Time 5-10 years (2-4 updates per day)
    Battery CR2450*2ea (Replaceable Batteries)
    Power 0.1W

    *Battery life time dependent on the frequency of updates

    DISPLAY
    Display Area 66.3x28.5mm/2.9inch
    Display Colour Black & White & Red / Black & White & Yellow
    Display Mode Dot Matrix Display
    Resolution 296 × 128 pixel
    DPI 183
    Water Proof IP53
    LED Light None
    Viewing Angle > 170°
    Time of Refresh 16 s
    Power Consumption of Refresh 8 mA
    Language Multi-Language Available

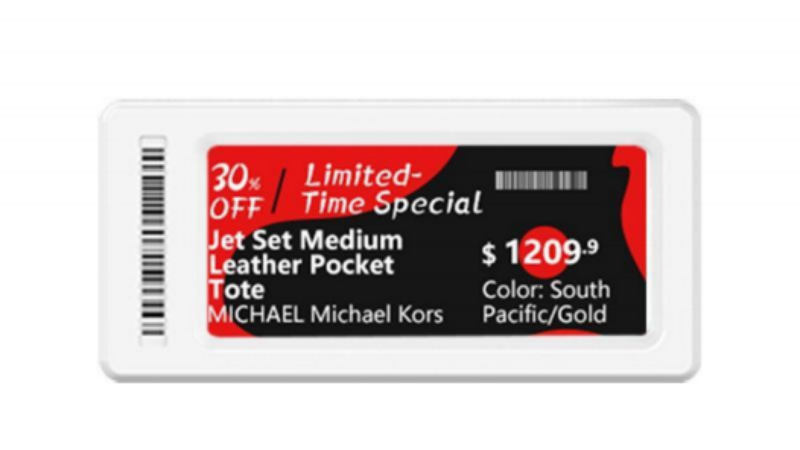

    FRONT VIEW

    acvava (4)

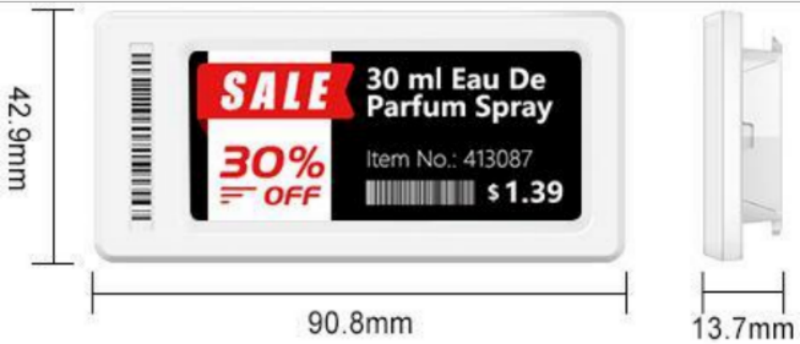

    MEASURES VIEW

    acvava (1)

    Maintenance and Maintenance

    Finally, one of the most significant advantages of electronic shelf labels is the potential to increase profit margins. By reducing pricing errors, increasing efficiency and providing a better customer experience, electronic shelf labels can help retailers increase sales and reduce costs. This combination can lead to higher profit margins, which are critical to long-term sustainability and success.

    In conclusion, electronic shelf labels are a powerful tool for managing inventory and providing pricing information to customers. However, they require proper maintenance to ensure they continue to function efficiently. By following these tips, businesses can keep their electronic shelf labels in good working order, minimize the risk of errors and maximize the benefits they provide to customers and employees.
