2.4GHz Base Station For ESL

Short Description:

2.4GHz + 5GHz wireless protocol, our labels can be updated multiple times each day and under normal usage conditions (3 times screen changes per day), batteries typically last for up to 5-10 years.

EATACCN wireless protocol uses less energy because of its time intelligent and leverages the ESL infrastructure key component of the connected store enabling retailers to connect directly with their customers at the point of decision. Our  Electronic Shelf Labels are available with LED lights and NFC capability which are controlled

centrally by the cloud platform.


  • Product Code: YAP-01

    • Product Detail

    Product Tags

    Key Features

    ▶ Communicate to ESL units automatically in the initial setting

    ▶High-speed bi-directional communication

    ▶Simple installation, plug & play High capacity and wide coverage



    vav

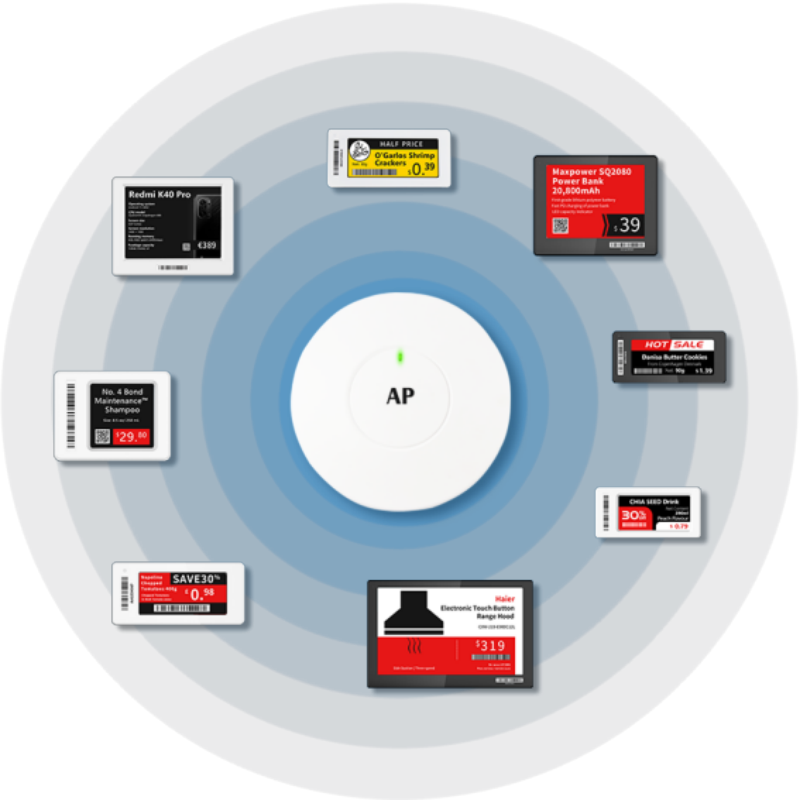

    2.4GHZ AP Base Station

    General Specification
    Model YAP-01
    Frequency 2.4GHz-5GHz
    Working Voltage 4.8-5.5V
    Protocol Zigbee (private)
    Chipset Texas Instrument
    Material ABS
    Total dimensions (mm) 178*38*20mm
    Operational
    Operating Temperature 0-50⁰C
    Wifi speed 1167Mbps
    Coverage indoor 30-40m
    POE Support

    Function Description

    Different from other ESL manufacturers, we have comprehensive ESL solution including hardware and software incorporated with ESL shelf labels, AP base station has coverage of 300 square meters and its maximum radius up to 30 meters. The communication channel between ESL shelf labels and AP base station is 2.4GHZ wireless communication. By utilizing our ESL software platform, one single AP base station can bind unlimited ESL shelf labels. Particularly, our ESL solution can achieve price change of 20,000 ESL shelf labels instantly within 20 minutes. Moreover, it is convenient to use a PDA monitor and an APP of mobile phone to remote control the price information of product. Besides, it is compatible with other internet of thing (lOT) solutions and it is easy to establish the linkage between retailers’ POS or ERP systems and our ESL system.
