PC5-T Heat map people counter
Features
Suitable for complex lighting scenarios
The accuracy rate is 98% for normal indoor scene
Angel of view up to 140°Horizontal × 120°Vertical
Built-in storage (EMMC) Support Offline Storage, Support ANR(Data Automatic Network Replenishment）
Support POE Power supply，Flexible Deployment
Support static IP and DHCP
Applicable to various commercial complexes, supermarkets, stores and other places
Privacy-secure Algorithm and Design
Parameters
| Model | PC5-T |
| General Parameters | |
| Image Sensor | 1/4"CMOS Senor |
| Resolution | 1280*800@25fps |
| Frame Rate | 1～25fps |
| Angle of View | 140°Horizontal × 120°Vertical |
| Functions | |
| Installation method | Mounting / Suspending |
| Install Height | 1.9m~3.5m |
| Detect Range | 1.1m~9.89m |
| Height Configuration | Support |
| Filtration Height | 0.5cm~1.2m |
| System Feature | Built-in video analysis intelligent algorithm, support real-time statistics of the number of passengers in and out of the area, can exclude the background, light, shadow, shopping cart and other stuff. |
| Accuracy | ≧98% |
| Backup | Front end Flash storage，up to 180 days, ANR |
| Network Protocols | IPv4、TCP、UDP、DHCP、RTP、RTSP、DNS、DDNS、NTP、FTPP、HTTP |
| Ports | |
| Ethernet | 1×RJ45，1000Base-TX, RS-485 |
| Power port | 1×DC 5.5 x 2.1mm |
| Environmental | |
| Operating Temperature | 0℃～45℃ |
| Operating Humidity | 20％～80％ |
| Power | DC12V±10%, POE 802.3af |
| Power Consumption | ≤ 4 W |
| Mechanical | |
| Weight | 0.46Kg |

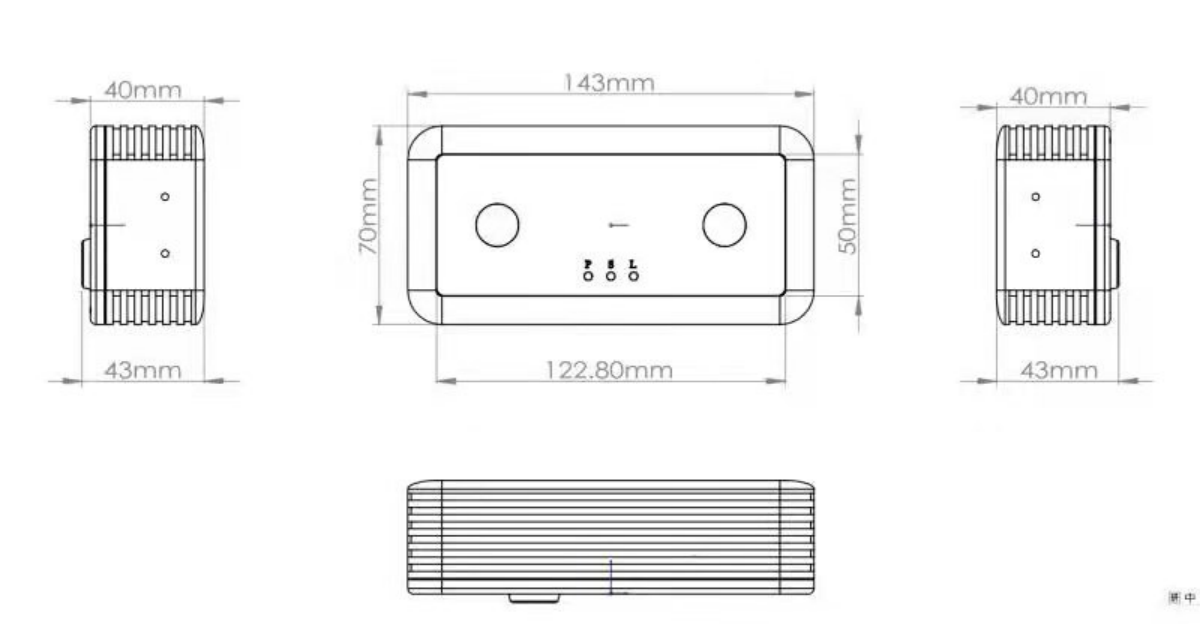

| Dimensions | 143mm x 70mm x 40mm |
| Installation | Ceiling Mount / Suspension |
Installation height and coverage width comparison table
|
Installation height |
Width of cover |
|
1.9m |
1.1m |
|
2m |
1.65m |
|
2.5m |
4.5m |
|
3.0m |
7.14m |
|
3.5m |
9.89m |
Installation Height and Coverage Area(㎡)（Heatmap Function）
| Installation height | Width of cover |
| 2.5m | 12.19㎡ |
| 3.0m | 32.13㎡ |
| 3.5m | 61.71㎡ |
Installation Height and Coverage Area(㎡)（Heatmap Function）
Demographic Advantage
Finally, population counters can be used to increase safety and security. By monitoring the number of people in a specific area, security personnel can quickly identify and respond to potential threats or emergencies, reducing the risk of harm to customers, visitors and employees.
Demographics usage scenarios
Population counters are used in a variety of settings, each with its own specific application. Here are some common examples of how demographers are used:
Retail: People counters are used in retail stores to track foot traffic and improve customer experience. This data can be used to optimize store layouts, staffing levels and product placement, as well as identify trends and changes in customer behavior.
Transportation: Demographic counters are used in transportation hubs such as train stations and airports to track passenger flow and improve crowd management. This data can be used to optimize staffing levels, reduce wait times and improve passenger flow.
