P1.86 SMD LED Full Color Screen
High-Definition Resolution of 172 points (W) * 86 points (H)
Eco-Friendly Use Product
Android Operation System
Free CMS System Operation
WIFI- Communication
SMD LED Display
Automated Display 24/7
Customized Sizes Option
Sign & Advertising Display
Installation & Maintenance
OEM & ODM Services
What Are Advantages Of SMD LED Full Color Screen In Shopping Mall?
Eco-Friendly Use Product
SMD LED Screens are economic & environmental protection products since they have characteristics such as small & light size, no heat, no mercury, long span life, low voltage consumption, high brightness effect comparing other products of digital LED screens.

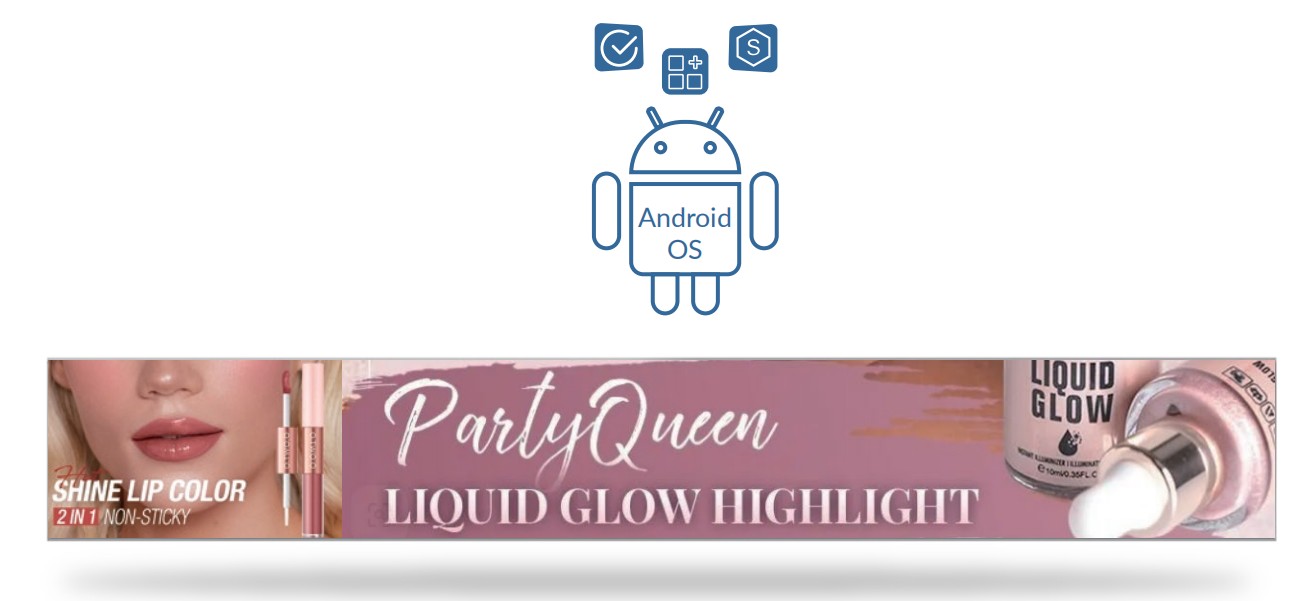

Android Operation System
Installing Android Operation System in SMD LED screen is convenient for end-users to understand and operate for displaying some advertising slogan and advertisement videos.

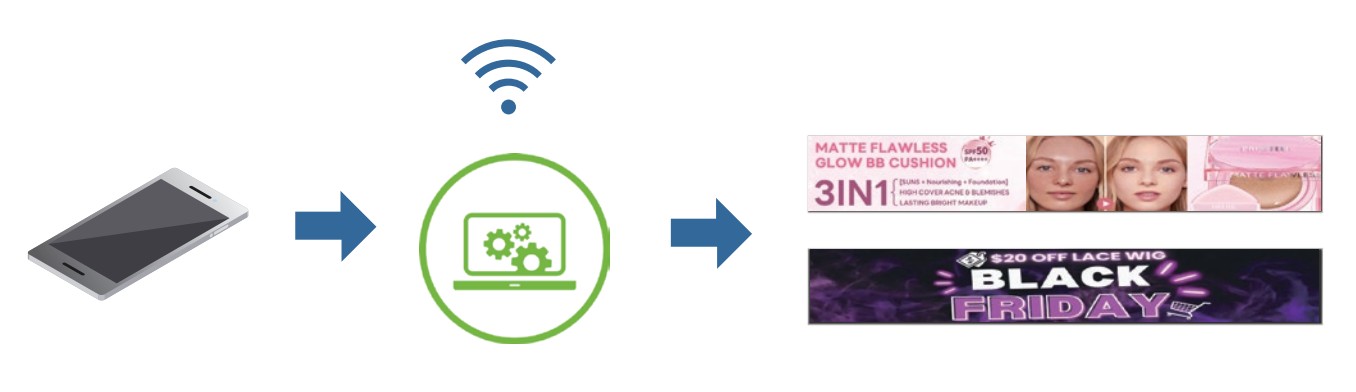

Free CMS System Operation
We provide free CMS system like APP to end-users. It is easy for end-users to install APP via mobile phone and it is convenient for them to upload or replace advertisement immediately.

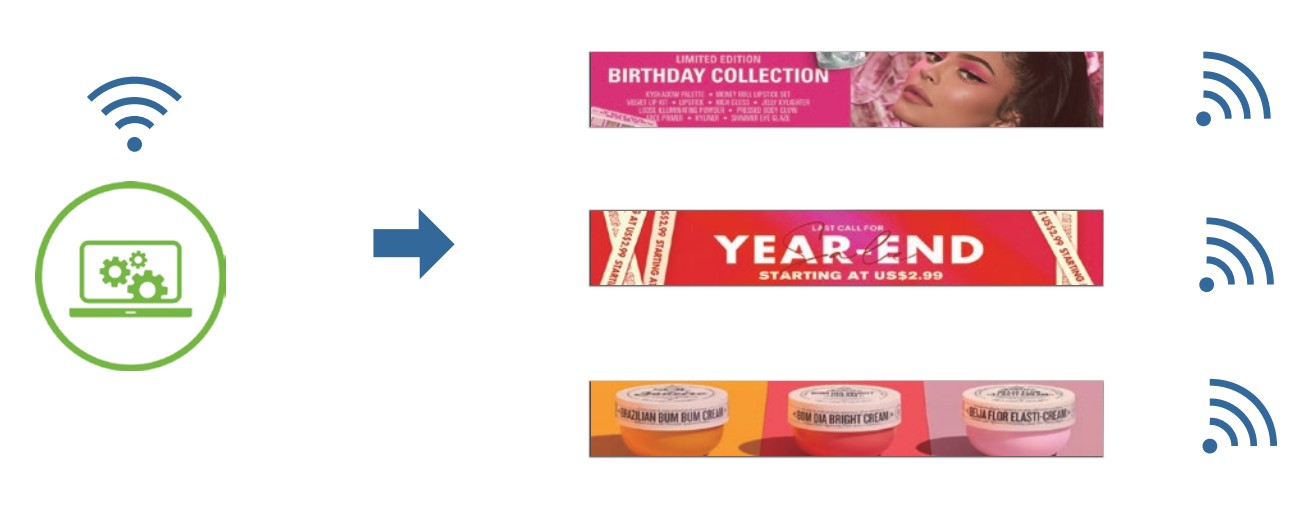

WIFI Communication
By using wireless communication technology, end-users can display advertisement remotely by uploading any format of files to the provided CMS system.

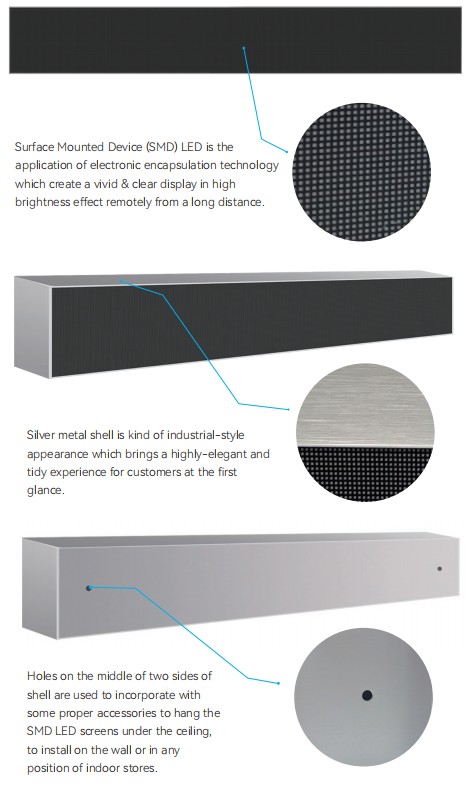

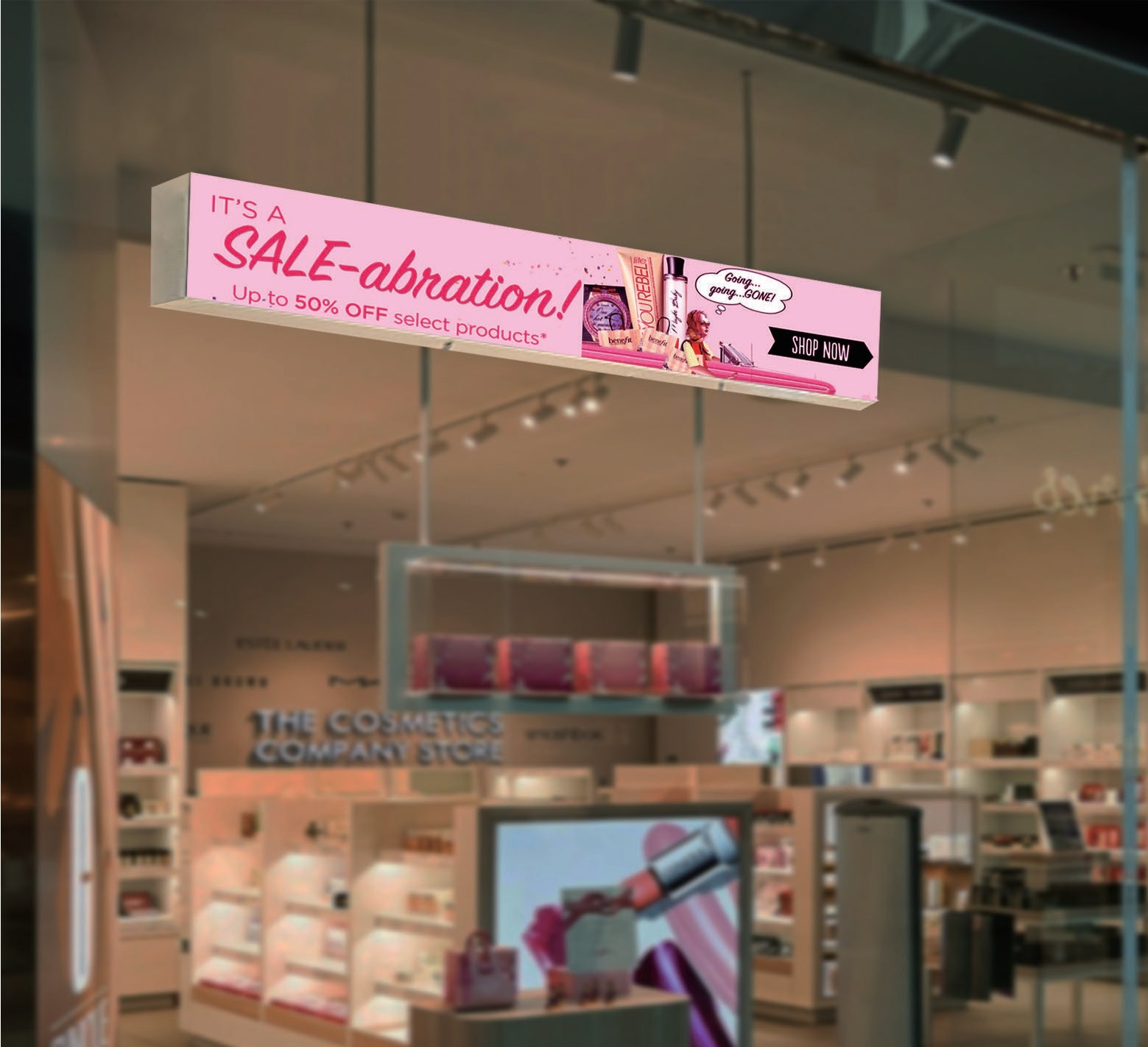

SMD LED Display

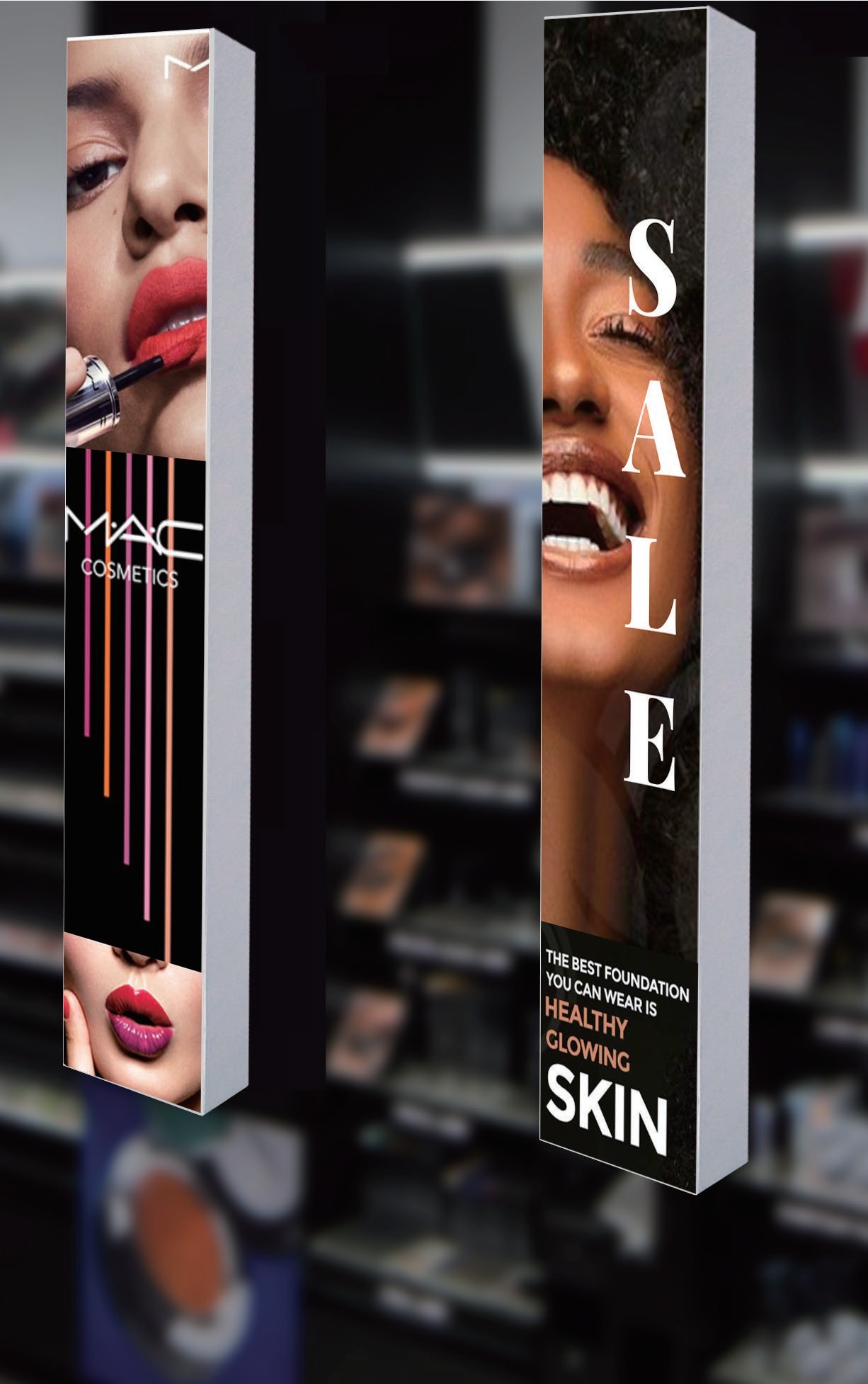

The advantage of SMD LED screen display is that customers can view sign and advertisement clearly in a long term distance, which are used to fitting the cutting-edge fashion decoration of indoor retail stores like clothing shops, cosmetics store and new retail stores in shopping mall.
Automated Display 24/7
Once end-users plug the power on in-stores, SMD LED screen will automatically display slogan and advertisement for 24 hours in 7 days.
Customized Sizes Option
We provide customization services on sizes of SMD LED screens for our clients. That is, we could meet the requirements of clients on length, width and resolution of screen.

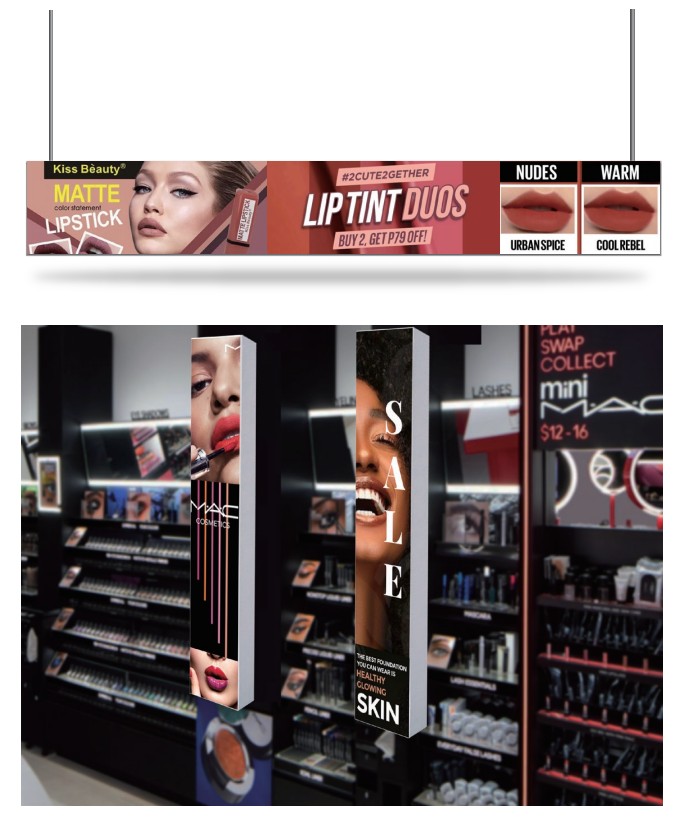

Sign & Advertising Display

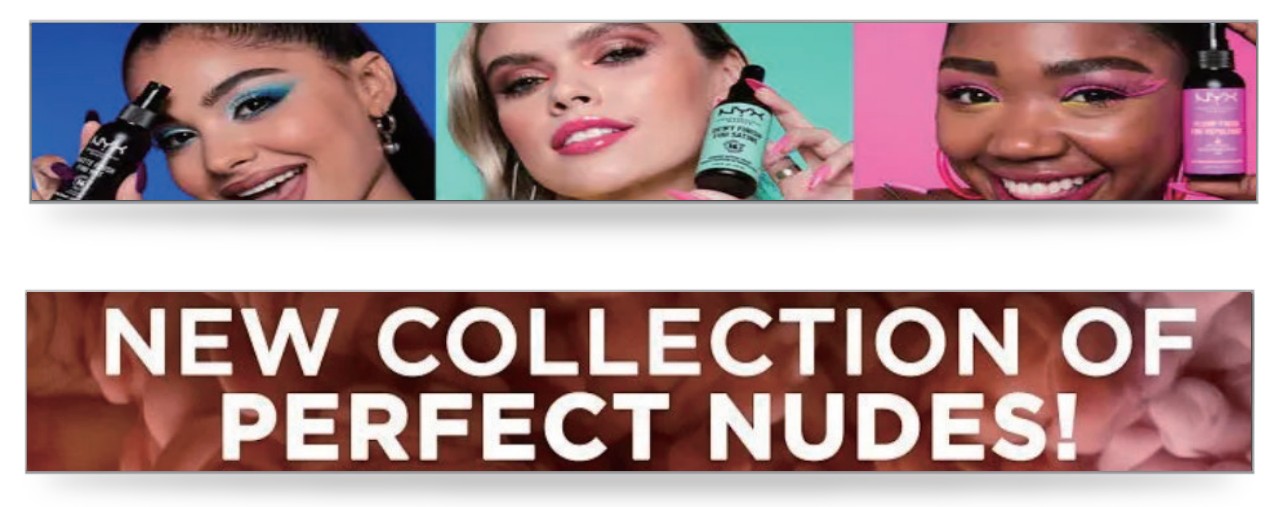

Replacing traditional advertisement sign and broadcast, our SMD LED screen is kind of digital signage display which can support various types of play content such as image, text files, animation videos, etc.

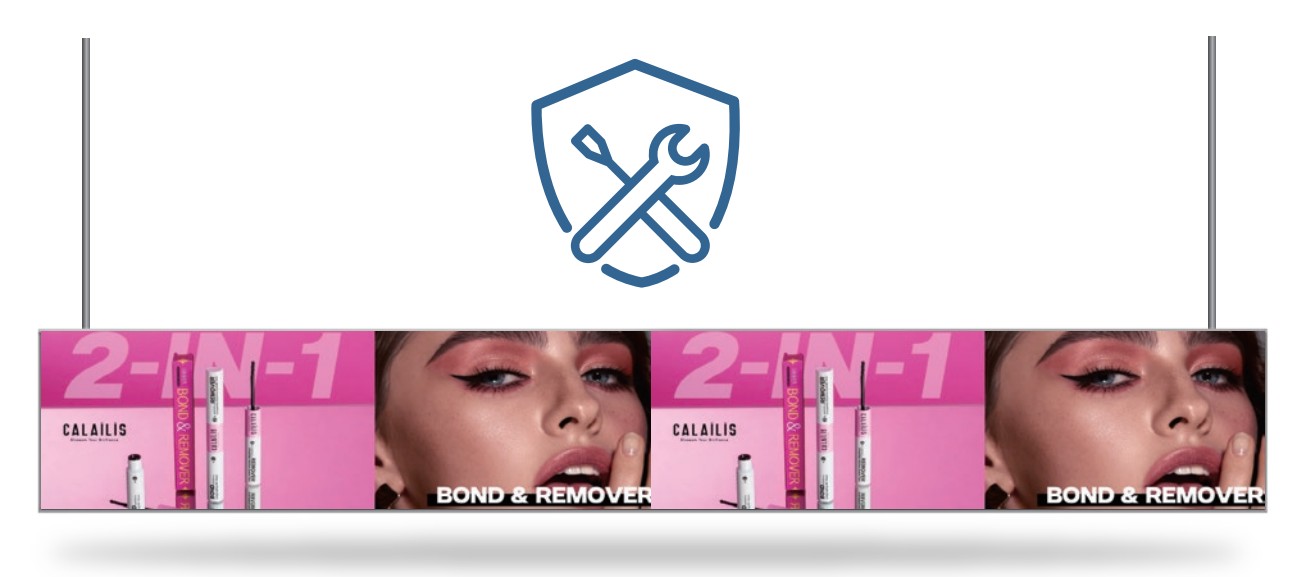

Installation & Maintenance
Our SMD LED screens can be installed indoor with different accessories such as holder, lifting rope and backboard as well as in different locations depending the requirements of clients. And we provide maintenance services during the warranty of one year after sales.
OEM & ODM Services
We provide OEM & ODM services to our clients based on the exact minimum quantity requirement announced by EATACCN company or the agreement initially signed by both parties.
Specification Table
| ModuleParameters | Size(W*H*T) | 320mm×160 mm×15mm | |||||||
| Encapsulation method | SMD | ||||||||
| Pixel（ mm） | 1.86mm | ||||||||
| Pixel points (points / m2) | 288888points / m2 | ||||||||
| Resolution (w × h) | 172points× 86points | ||||||||
| Weight (kg / piece) | 0.37kg / piece | ||||||||
|
Core parameter |
Structure Specification | 1R1G1B/Pixel SMD1921 | |||||||
| Professional Analysis | |||||||||
| Item | Analysis Item | Analysis Contents | |||||||
| 1 | Color Blending Analysis | In order to achieve the best white balance perfor-mance, color blending has the strict requirements on led brightness. And the R:G:B ratio is 3:6:1 | |||||||
| 2 | Item | Wave Length | Brightness | Chip Brand | Testing Conditions | ||||
| Pure Red | 625nm | 220mcd | EPISTAR | 25℃,20mA | |||||
| Pure Green | 523nm | 650mcd | SANAN | 25℃,20mA | |||||
| Pure Blue | 467nm | 110mcd | SANAN | 25℃,20mA | |||||
|
LED screen parameters |
Description | Technical Parameters Indicators | |||||||
| Technical parameter | Lamp body | smd1010 | |||||||
| Single pixel brightness | R: 95-125mcd, G: 310-403mcd, B: 70-91mcd | ||||||||
| Screen Depth | 6.5cm | ||||||||
| Carton weight | 9kgs | ||||||||

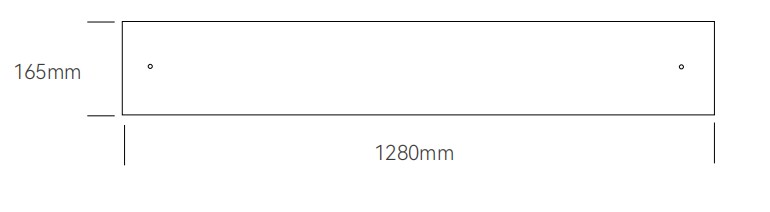

| Screen size | 1.28 meters length, 0.165 meters height | ||||||||
| Pixel density | 516 pixels length and 86 pixels height | ||||||||
| Power | Working Voltage | AC220V±10% | |||||||
| Average Consumption | 80-100W/m2 | ||||||||
| Max Consumption | ≤200W/m2 | ||||||||
| Current | ≤ 18ma (single lamp) | ||||||||
|
LED screen parameters |
Control System | Control host | Android |
| Control mode | asynchronous control | ||
|
Main Technology Specification |
Driver | LED special constant current driver 6124 | |
| Drive mode | 1 / 43 sweep drive | ||
| Refresh frequency | ≥3840 frames / seconds | ||
| Gray level / color | 65536 RGB levels | ||
| White balance brightness | ≥ 700cd / m2 | ||
| Brightness adjustment mode | software adjustment 255 levels adjustable | ||
| Mean time between failures | ≥ 6000 hours | ||
| Half-life | ≥ 70 thousand hours | ||
| Flatness | between any adjacent pixels ≤ 1.86mm;Module splicing gap < 1.0mm; | ||
| Effective communication distance | no less than 5m | ||
| Software | LED Studio | ||
| Protection Technology | Humidity Protection, Dust Protection, Rust Protection, Static-Protection,etc. | ||
| Play content | Text file, word file, all picture files ( BMP／JPG／GIF／PCX．．． ),Some animation files ( MPG ／MPEG／MPV／MPA／AVI／VCD／SWF/RM／RA／RMJ／ASF．．． ). | ||
| Assembly structure | The screen adopts a module - display box - display screen combinedassembly structure, which is convenient to assemble. | ||
Technical specification

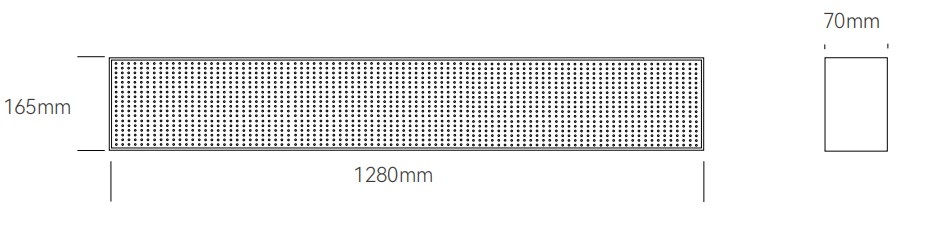

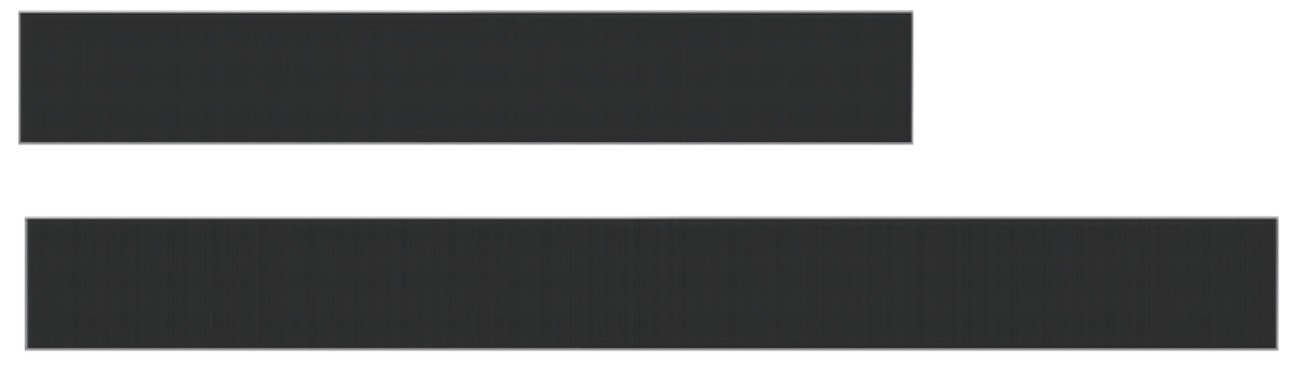

Front View:

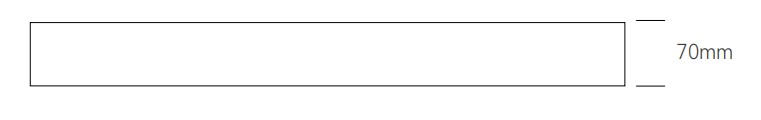

Thickness:
Back View:
