2.9″ Retail IoT Solution – Electronic Shelf Label
price display
promotion discount
SKU barcode
products photo
QR code
2.4Ghz Wifi
Battery replace
POS integration
Function Description
Utilizing E-ink Technology, it can display product and price information shown on screen with a low power consumption and with highly similarity of visual comfort as ink on paper. After deploying our ESL system on SAAS cloud base, it can easily bind unlimited ESL labels under a single AP station, design templates with various elements, transmit data efficiently and update product information of almost 10,000 ESL labels instantly in 20 minutes through the wireless communication channel of 2.4 GHZ technology. Eventually, it brings numerous benefits to retailers such as enhance their SKU information management efficiency and accuracy, improve the customer experience and promotion sales rate, etc.
Technical specifications
| Size(mm*mm*mm) | 90.11*41.81*9.1 |
| Active Display Area(mm*mm) | 66.9*29.1 |
| Weight(g) | 36.6 |
| Case Color | Elegant white or customized |
| Display Size (inch) | 2.9 |
| Resolution(pixel) | 296*128 |
| DPL | 112 |
| Display Colour | BW,BWR,BWRY |
| LED Flash | Any color(set up in System) |
| Working life | 5 years (4 updates per day) |
| Battery Spec | 2*600mAh |
| Battery composition | Single cell |
| Operating Temperature(°C) | 0~40 |
| Storage Temperature(°C) | -20~40 |
| Working Humidity(%RH) | 30~70 |
| Protection Level | IP54 |
| Certification | ROHS,CE Standards,FCC |
| RF Wireless Communicaiton Parameters | |
| Working Frequency | 2402MHz~2480MHz |
| System Throughput | Up to 18,000 labels per hour |

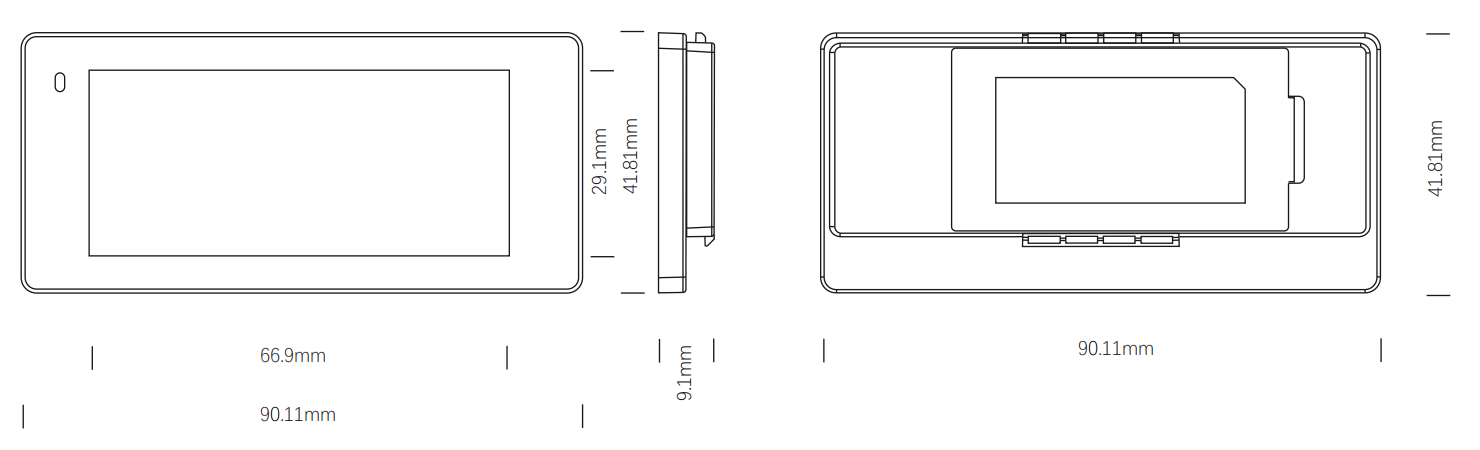

Dimension Drawing
